 From the Manufacturer

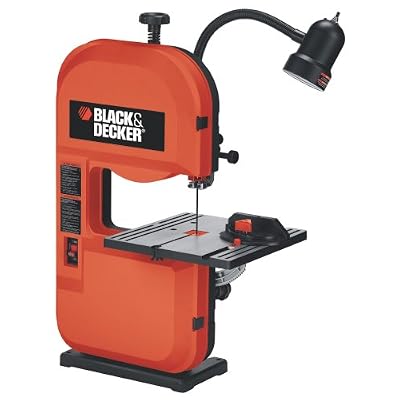

See what you've been missing! The flexible lamp on this 9-inch band saw adjusts to illuminate the workpiece for optimum visibility. This two-wheel band saw has the capacity to cut thick material with 3-3/4 inches of clearance under the blade guide and wheel. The two-wheel design requires less workbench space and reduces blade breakage when compared to three-wheel designs. Powered by a 1/3-horsepower ball-bearing induction motor, the blade turns at 3,000 surface feet per minute. The wheels are balanced for smooth, vibration-free operation, and a built-in cleaning brush keeps the blade and tires free of chips. Independently adjustable blade guides and ball bearing blade supports maintain blade alignment. A rack and pinion system allows for safe and easy adjustment of the blade guard and upper guides. Blade changes are simple with the swing open door for easy access and a quick-release tension lever. The table tilts 45 degrees to the right and a miter gage is included for accurate angle cutting. Mounting this saw to a bench or stand is quick and easy with the pre-drilled base holes. A removable lockout key prevents unauthorized use.
WHAT'S IN THE BOX
Delta ShopMaster Model BS100 with a 1/3HP, 120V motor; rack and pinion upper blade guide and table tilt assemblies, flexible lamp, 59 1/2" blade and instruction manual.
DELTA DIFFERENCE
- Powerful, 1/3HP ball-bearing motor for smooth performance and longer life.

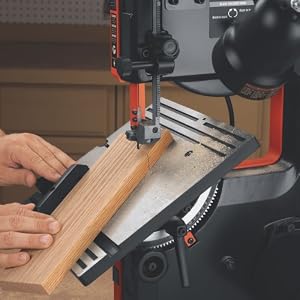

- Ribbed aluminum table with miter gage slot features a rack and pinion table tilt adjustment for precision tilt settings from 3° L to 45° R.
- Rack and pinion upper blade guide adjustment for precise height adjustments under the guide.
- Built-in dust chute for attaching to a dust collection system.
- Flexible lamp illuminates table and workpiece.
- Pre-drilled base holes simplify benchtop mounting.
- Miter gage for straight and angle cutting operations.
SPECIFICATIONS
MOTOR:
15 amp
CAPACITY (ht. under guide):
3 3/4"
MOTOR CONTROL:
Toggle switch with removable lock-out key
TABLE:
Size: 11 3/8" X 11 3/8"(289 X 289 mm)
Miter gage slot: 1/4" X 5/8"
Tilt: 48° R; 3° L
CAPACITIES:
Frame to blade: 9"(229 mm)
Under guide & wheel: 3 3/4"(95 mm)
BLADE:
Width: 1/8"(3 mm) minimum; 3/8"(10 mm) maximum
Length: 59 1/2"(1511 mm)
Speed: 3000 SFPM (914 SMPM)
Dust port: 1 3/4" O.D.(44 mm)
OVERALL DIMENSIONS:
Length: 33"(838 mm)
Width: 20"(508 mm)
Height: 29"(737 mm)
WEIGHT: 33 lbs.(15 kg)
WARRANTY
Two-year limited warranty on machines, parts, and accessories.
Product Description
9" Band Saw, Powerful 1/3 HP Induction Motor, Rack & Pinion Tilting Table & Upper Blade Guide For Precision Adjustments, Built In Dust Chute, Ribbed Aluminum Table With Miter Gauge Slot, Flexible Lamp Included.
|
