Tormek Sharpening System

in association with Rockler Woodworking and Hardware Superstore

» About the Tormek Sharpening System

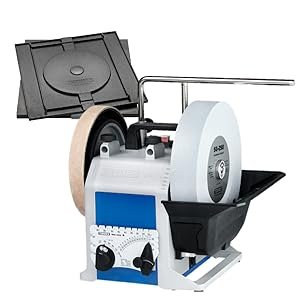

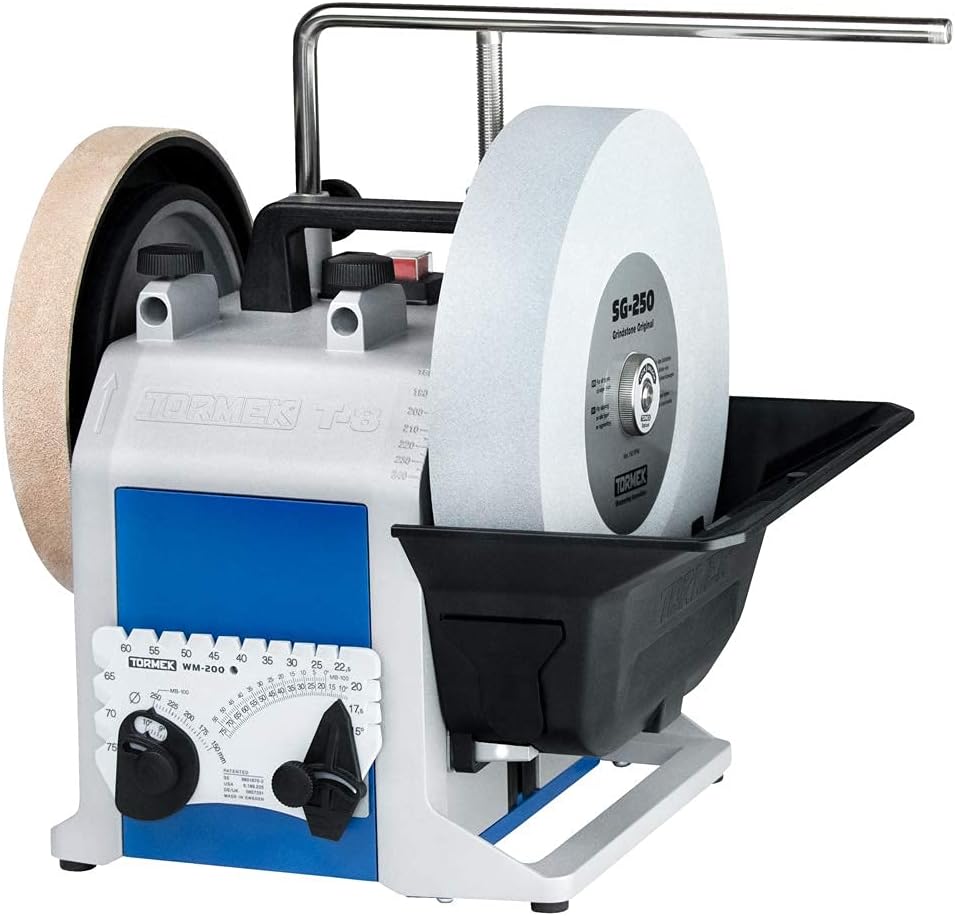

tormek system with details outlinedWet stone grinding with slow running speed gives you full control while grinding. The wheel will not shatter and there are no dangerous sparks with Tormek system. The quiet vibration-free industrial motor is rated for continuous operation, and the honing wheel has a coupling for fast removal.

With the Tormek System, you do BOTH the initial grinding (when you shape the tool and create the optimal edge angle) and the sharpening on the same grindstone. The grindstone can easily be changed from fast grinding to fine sharpening. The grinding/sharpening is carried out with water cooling, so there is no risk of burning the edge and drawing the hardening from the steel. The honing and polishing is carried out on a leather honing wheel.

Because of the exact repeatability, you remove very little material and therefore the sharpening is completed quickly. The result is that the lifetime of your tools is considerably prolonged.

Once you have ground your tool to the desired shape and edge angle, you can reproduce exactly the same shape with all future sharpenings-even difficult tools like fingernail turning gouges, spoon shaped woodcarving gouges and oval skew chisels with a curved edge.

» The complete system includes:

  • Grinding stone (#60467)
  • New! Universal Support with micro adjust Foundation of the system.(#60467)
  • Horizontal Base for Universal Support (#12639)
  • Straight edge jig for plane irons, wood chisels and spoke shave blades
  • Genuine leather honing wheel for producing razor sharp edges
  • Tube of honing compound (#60582)
  • The 6th Edition handbook (#37618)
  • Tormek Instruction Video (#24434)
  • Pro AngleMaster-Sets any edge

Order Here

» Additional System accessories are sold separately:

Horizontal Base for Universal Support (XB-100)
(#12639)Horizontal Base for Universal Support

Switch from vertical base to horizontal base when you grind towards the edge, or when you need lower grinding pressure.

Included.

Profiled Leather Wheel (LA-100)
(#37605)Profiled Leather Wheel

Excellent for inside honing and polishing gouges and V-tools.

Sold separately.

Stone Truing Tool (ADV-50D)
(#60566) Stone Truing Too

Trues the stone to perfect roundness and an exact, flat grinding surface.

Sold separately.

Stone Grader (SP-650)
(#60574) Stone Grader

Grades the grinding stone to a fines grit in just 30 seconds. Also renews glazed stones.

Sold separately.

Honing Compound (PA-70)
(#60582) Honing Compound

For the leather honing wheels.

Included.

Straight Edge Jig (SVH-60)

straight edge jigFor plane irons, wood chisels and spoke shave blades.

Included.

Tormek Sharpening Handbook
(HB-10)

(#37618) The Tormek Sharpening Handbook

Gives you detail in how to work with your Tormek system.

Included.

Sharpening Video (VID-4US)
(#24434) Sharpening Video

The Tormek Method of grinding , sharpening and honing edge tools. 23 minutes, works with the handbook.

Included.

Universal Gouge Jig (SVD-185)
(#18772) Universal Gouge Jig

Puts the edge back on V-and fingernail-shaped tools and gouges with a maximum of 1'' width. Also for turning cutters

Sold separately.

Short Tool Jig (SVS-32)
(#27774)Short Tool Jig

For straight shanked carving gouges and V-tools down to 1-3/4'' length. For short wood chisels and tools for power carvers. Max tool width 1-1/4''

Sold separately.

Tool Rest (SVD-110)
(#60483) Tool Rest Jig

For turning scrapers and carving scrapers and in shaves.

Sold separately.

Axe Grinding Jig (SVA-170)
(#60491)Axe Grinding Jig

For carving and carpenter's axes. Max. axe size 6-1/2''.

Sold separately.

Scissors Jig (SVX-150)
(#60509) Scissors Jig

Puts the maximum sharpness on all sizes of scissors and shears.

Sold separately.

Planer/Joiner Blade Jig (SVH-320)
(#60517) Planer/Joiner Blade Jig

Works with blades of any length.

Sold separately.

Long Knife Jig (SVM-100)
(#60525) Long Knife Jig

Gives greater stability on longer, thinner blades. Minimum blade length to be used with this jig is 4-23/32''.

Sold separately.

Short Knife Jig (SVM-45)
(#60533) Short Knife Jig

Recommended for knives with a minimum blade length of 2-3/8''.

Sold separately.

Multi-Jig (SVS-50)
(#37592)Multi-Jig

For turning skew chisels, parting and beading tools and roughing gouges. Straight carving gouges up to 2'' width.

Sold separately.

Machine Cover (MH-380)
(#24427)Machine Cover

Keeps your system free from dust and debris when not in use.

Sold separately.

NEW! Universal Support with Micro Adjust
Universal Support with Micro Adjust

Foundation of the system. Can be placed towards or away from the edge.

Included with #60467.
