 The 10" blade is driven by a high-performance 3-horsepower, 230-volt motor that'll slice through the densest woods without bogging down. It has a left-tilting arbor that has an arbor lock for easy blade changes. Micro adjustable miter gauge w/ aluminum extruded fence.The two extension wings, cabinet base and under-carriage trunion are made of heavy cast iron for long-term durability and vibration dampening. The saw comes with a 50" rip fence, riving knife, dust-collection hood, magnetic safety key, retractable casters, and saw blade. |
More Specifications:
- Arbor Diameter: 5/8"
- Arbor Speed: 4300 RPM
- Blade Diameter: 10"
- Maximum Depth of Cut: 3-1/8"
- Maximum Depth of Cut at 45°: 2-1/8"
- Maximum Diameter of Dado (in.) 8"
- Maximum Rip Left of Blade: 13-1/2"
- Maximum Rip Right of Blade: 50"
- Maximum Width of Dado: 13/16"
- Model Number PM2000
- Motor: 13 amps; 3HP, 1Ph; 230V
- Net Weight: 675 lbs
- Overall Dimensions: 85" x 37" x 39"
|
|
| |
 We think this benchtop is actually a cabinet saw in a compact, totally portable disguise. Its looks are completely deceiving, because it handles any job a big saw can, yet it’s compact for the home workshop and super convenient to take to a job site. It’s got the largest table surface in the worksite class, but lift the lock handle and open out the built-in extension rails and, believe it or not, you’re running sheet goods with a 25-inch rip capacity. The table surface is smooth as glass, and with a coat of wax on it, it’s superb. The extension rails ride effortlessly and lock securely, and the extension doesn’t give even under a full sheet of 3/4-ply. Bosch sells auxiliary left-side and rear supports for unbeatable capacity and stability. |
|
 An inexpensive, quality tool. Belt driven for smooth operation. Trim carpenters will appreciate this saw for its portability; it can be moved from room to room following the work. This is a great table saw for those weekend projects. It's light enough, so it can moved out of the garage or storage to be used for a day project and returned to its home at night. This is also a great starter table saw for those just getting into woodworking. Comes standard with a 2" dust port for attaching to a shop vacuum or dust collection system. |
|
 This JET® Tablesaw features a powerful 1-1/2HP motor with a poly-V drive belt transfer system to more efficiently power the saw blade. With a unique trunnion design, the motor is completely within the tablesaw cabinet rather than hanging out the backside like on competitive units. The steel extension tables give you a much larger working surface to help support the project while the double locking fence and deluxe miter gauge allow for precision cuts on any project. The unit has a left tilting blade for more controlled bevel cutting and offers a maximum 3-1/8" depth of cut at 90 degrees. |
| |

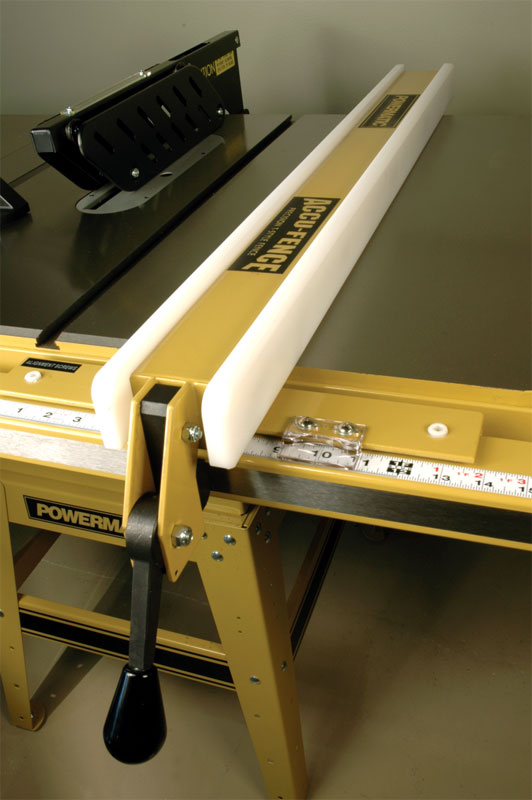

 A powerful 1-1/2-horsepower motor combined with rugged construction and 50-inch Accu-Fence system make the Artisan 10-inch table saw the premier table saw for the contractor, craftsman, or home hobbyist. Other features include the T-slot miter gauge, which increases accuracy and flexibility in stock width capabilities, and solid cast-iron extension wings, providing ruggedness for increased accuracy and longevity. The unitized wiring system is readily removed for portability. Shown with optional mobile base. |
Standard Equipment:
- Motor
- Accu-Fence
- 4" dust collection port
- Left and right cast iron extension wings
- Blade insert
- Dado insert
- Blade guard and splitter
- Mitre gauge
- Open stand
- Power cord
- Blade not included
|
|
|
